PU swivel castor braked with top plate - 100mm - 180kg

106 x 86 mm 180 kg 100 mm

unfortunately, this product is out of stock.

  • SKU: PUP4-100
  • Out of stock

£ 10.29 (12.35 Incl. VAT)

  • UK delivery in 1 - 3 Days Tooltip You will receive a track and trace e-mail
  • Specialized tailor-made advice
  • 2 Year warranty
  • 90 Day money back guarantee

Product description

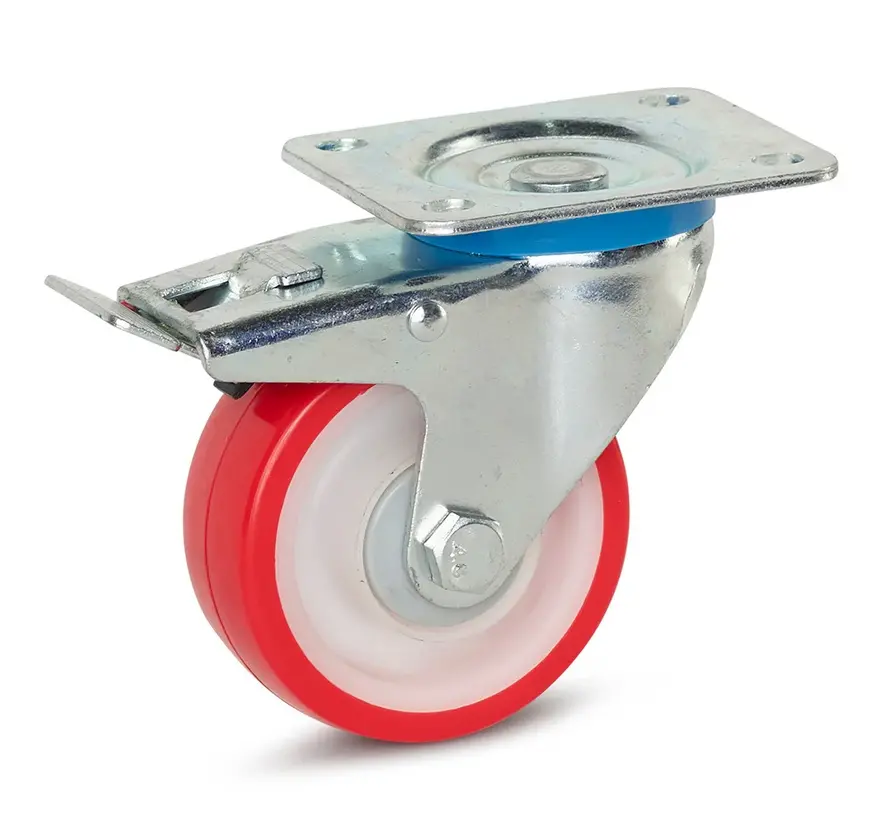

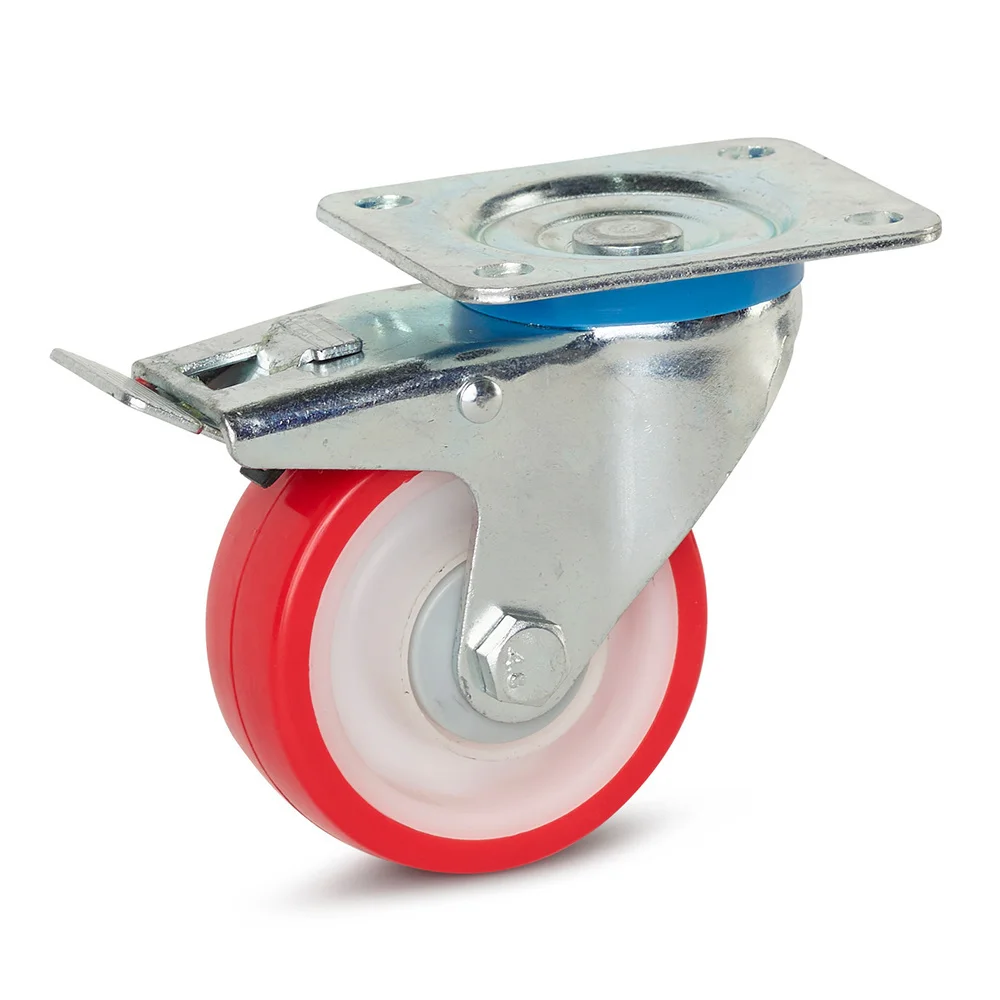

PU swivel castor braked with top plate - 100mm - 180kg

This PU (polyurethane) swivel castor has a diameter of 100 mm and a load capacity of 180 kg. The tyre is Polyurethane and the wheel core is polypropylene and therefore well suited for various applications where heavier load capacities are required.

Read the full product description

This nylon caster is double braked, meaning that both the wheel and the direction of rotation are blocked when it is on the brake.

This PU caster has a top plate, this allows this wheel to be easily fixed with 4 bolts.

The castors are well wear-resistant, suitable for temperatures from -20 to +80°C, resistant to most detergents and moisture. Leave no marks on the ground and the hardness is between rubber wheels and hard plastic wheels.

If you want to drive over flat, hard surfaces look at our Nylon castors.

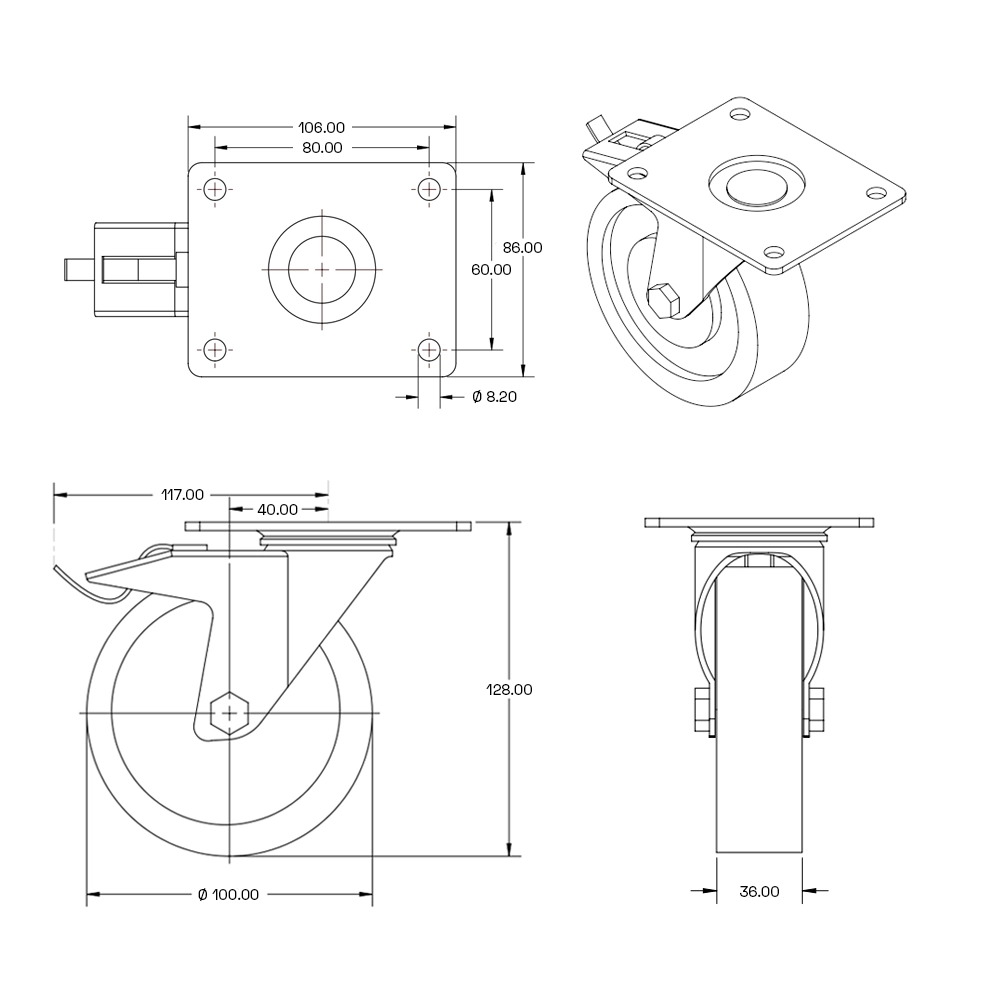

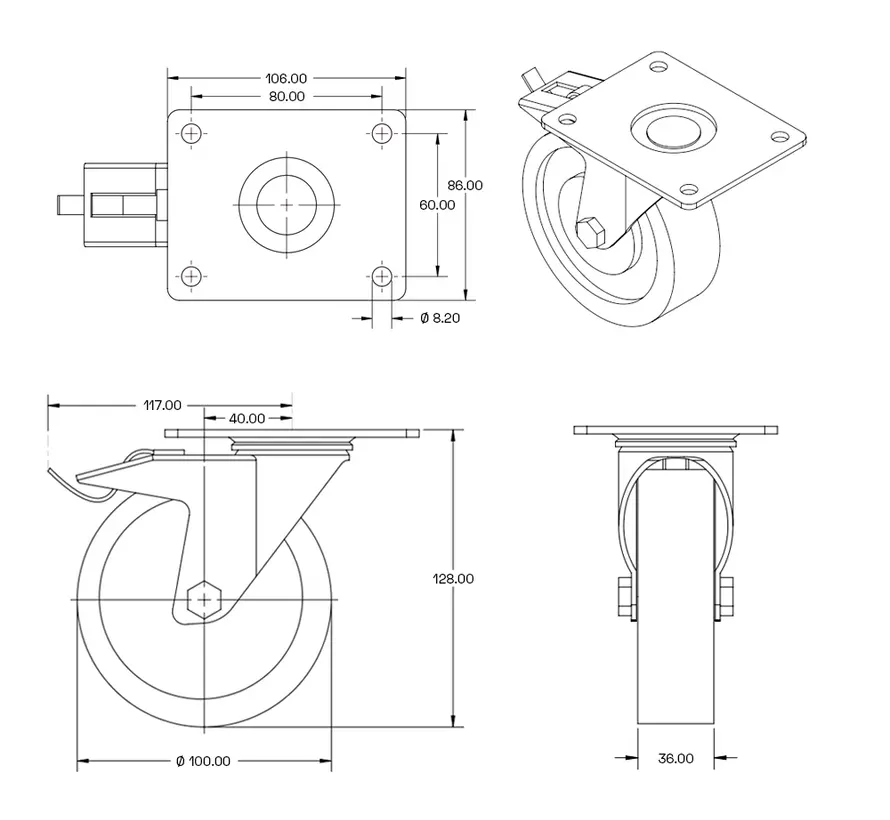

Specifications

Specifications for: PU swivel castor braked with top plate - 100mm - 180kg

  • Wheel Hardness Medium hard
  • Wheel Type Braked swivel castor - top plate
  • Bearing Ball bearing
  • Total Height 128 mm
  • Boltholes Centre to Centre 80 x 60 mm
  • Topplate 106 x 86 mm
  • Wheel centre Polypropylene
  • Tread PU
  • Load Capacity 180 kg
  • Tread width 36 mm
  • Diameter 100 mm
  • Swivel radius brake pedal 117 mm
  • Centre mounting plate - centre Wheel 40 mm
  • Fixing Bolthole 8 mm
